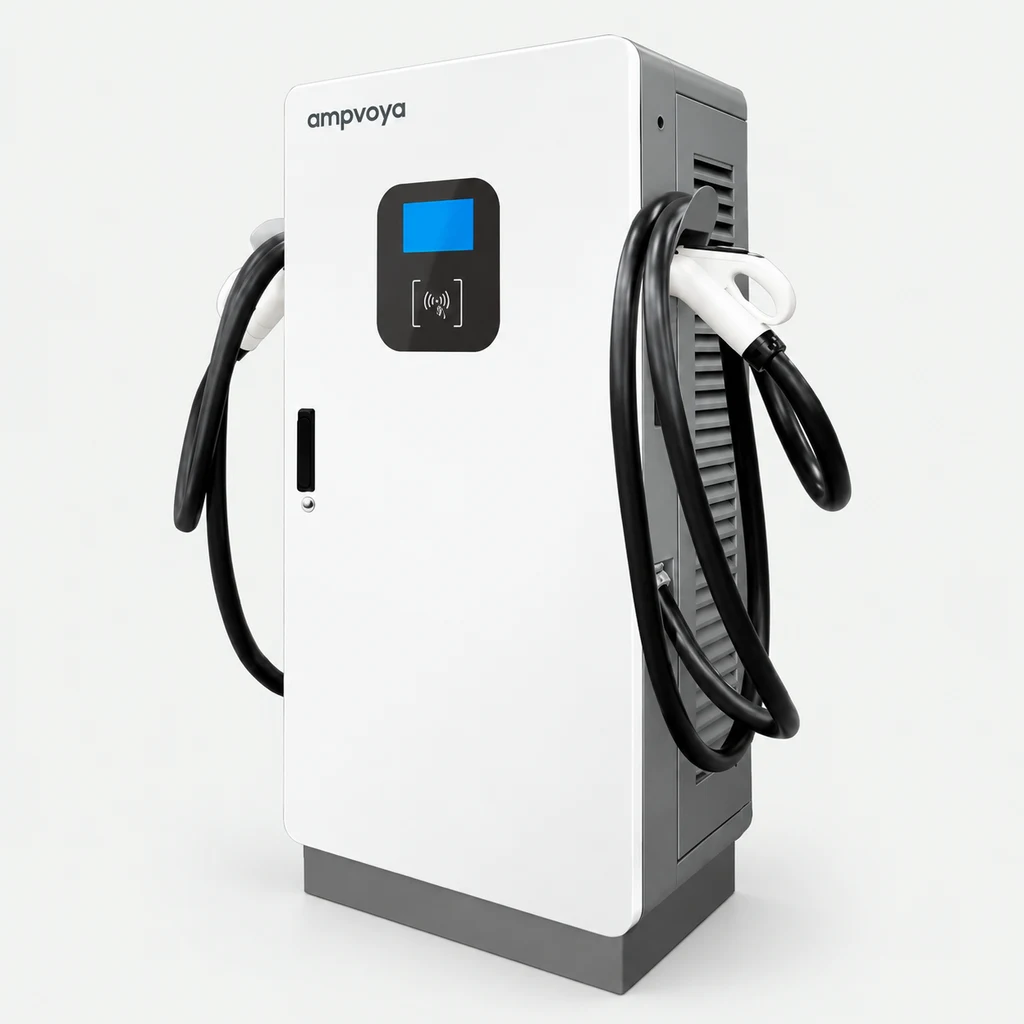

Ampvoya branding visualisation based on the reference configuration. Final hardware, finish and logo placement require sample approval.
60–240 kW Integrated DC Charger
The Ampvoya EC-D500 is a 60–240 kW DC charging series for fleet and public charging projects. The reference specification lists a 200–1,000 V DC output window and OCPP 1.6 JSON.
60–240 kW is a series rating range, not a promise of maximum power at every voltage or connector. Final power steps and simultaneous output require confirmation.
Final configurations and documents are subject to confirmation.
Know the specification.
Based on a 2023/2024 reference catalogue. Current hardware revision, availability and order terms require confirmation.
| Model | EC-D500 |
|---|---|
| Series power range | 60–240 kW |
| Output voltage | 200–1,000 V DC |
| Output current | Up to 300 A; per-connector / station interpretation and continuous duty limits to confirm |
| Connectors / terminals | 2 × CCS2 or 1 × CCS2 + 1 × GB/T |
| Input supply | 3-phase 400 V AC ±20%; 3P + N + PE |
| Input frequency | 45–65 Hz |
| Catalogue efficiency | Overall efficiency ≥95%; operating point to confirm |
| Power factor / THDi | ≥0.99 / ≤5%; conditions to confirm |
| Display | 7-inch colour touchscreen |
| Access | RFID card / QR code / app; payment service and backend are separate |
| Connectivity | Wi-Fi + Bluetooth; Ethernet / 4G optional |
| Backend protocol | OCPP 1.6 JSON listed; integration and supported profiles require confirmation |
| Metering | ±1% catalogue accuracy; legal billing approval not confirmed |
| Ingress protection | IP54 |
| Cable length | 5 m standard; 6 m / 7 m optional, subject to selected connector and cooling configuration |
| Dimensions (W × D × H) | 800 × 500 × 1,600 mm |
| Installation | Floor standing |
| Operating environment | −30°C to +50°C; 5%–95% humidity; altitude below 3,000 m |
| Storage temperature | −40°C to +50°C |
| Software | OTA updates listed; operating platform and service terms to confirm |
| Reference standards | IEC 61851-1, IEC 61851-23, IEC 61851-24 and IEC 62196 |
| Compliance documents | Listed standards are reference specifications. Model-specific reports and Ampvoya private-label coverage must be confirmed for the destination. |
| OEM / sample / delivery terms | Minimum order, sample availability, lead time and warranty require a model-specific quotation. |
Where to start.
Use these applications to define the brief. Suitability still depends on the site, vehicle and final product configuration.
- Fleet depot charging subject to vehicle and duty-cycle review
- Public or destination charging projects with an agreed site design
- OEM charging equipment programmes with a qualified installation partner
Make the brief yours.
Tell us the destination, expected quantity and branding requirements. Product appearance, packaging, cable length and electrical options need a configuration-specific review.
Before you enquire.
Is the full power range available at every vehicle voltage?
No. Actual output is constrained by the selected cabinet, module count, output current, vehicle battery and thermal limits. Request the power-versus-voltage curve and simultaneous charging limits for the quoted configuration.
Is public payment included?
RFID, QR code and app activation are listed. These do not establish an included payment terminal, roaming contract, payment processor or billing approval. Confirm the operating platform and local requirements separately.
Is the Ampvoya configuration ready to order?
Use this catalogue as a starting specification. Confirm the current hardware revision, available options, branding, samples and delivery terms in a written quotation before ordering.
What is the OEM minimum order?
The minimum order for this series has not yet been confirmed. The 1,000-unit minimum published for EC-W300 does not automatically apply to this series.
Are destination-specific certifications confirmed?
The reference catalogue lists technical standards. This does not establish certification for the Ampvoya version. Request the exact model declaration, test reports and private-label coverage for your destination.
